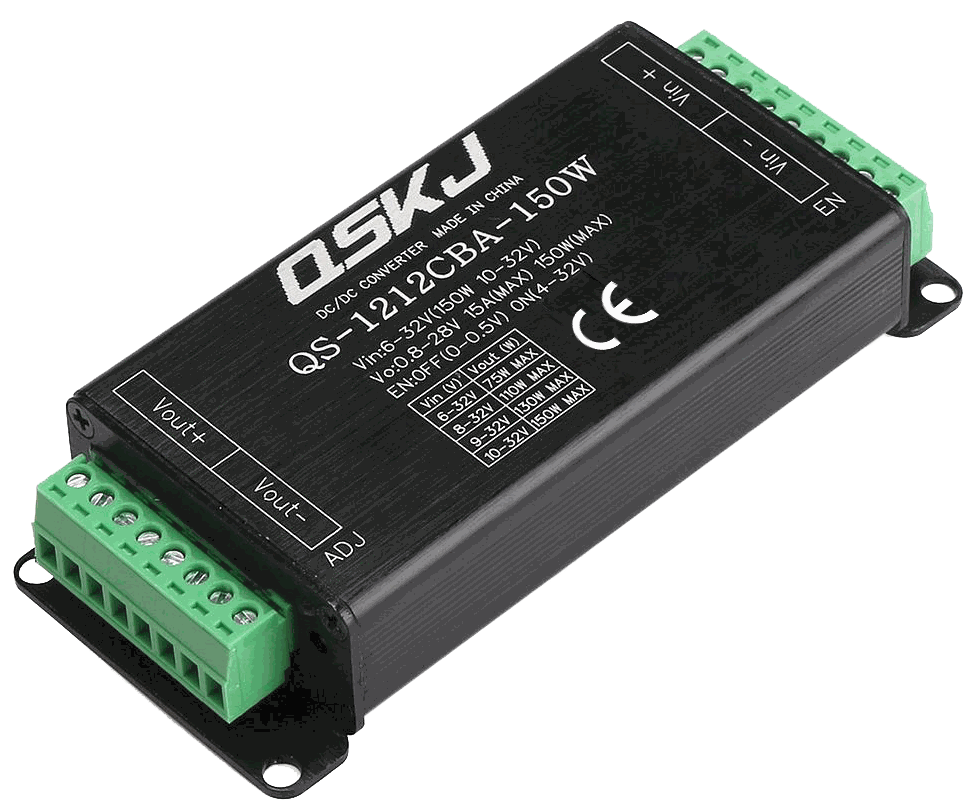

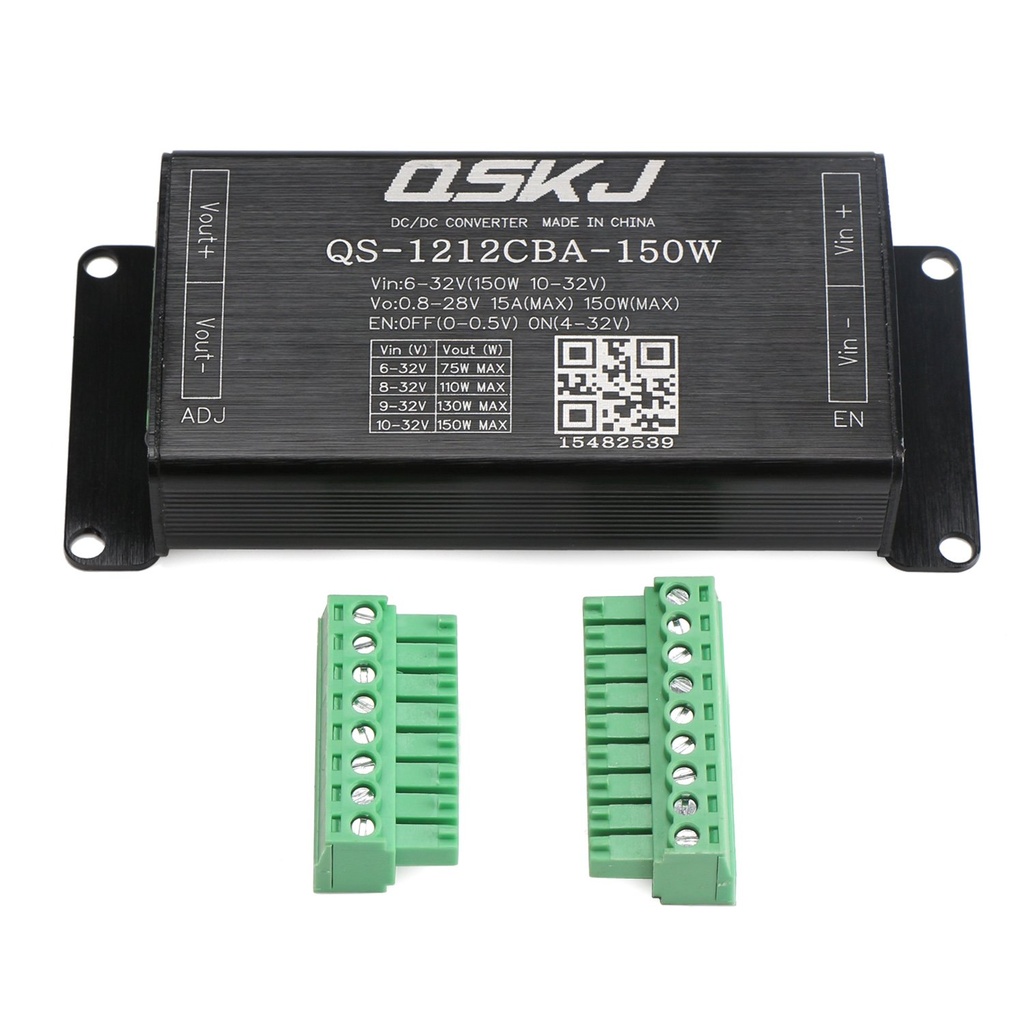

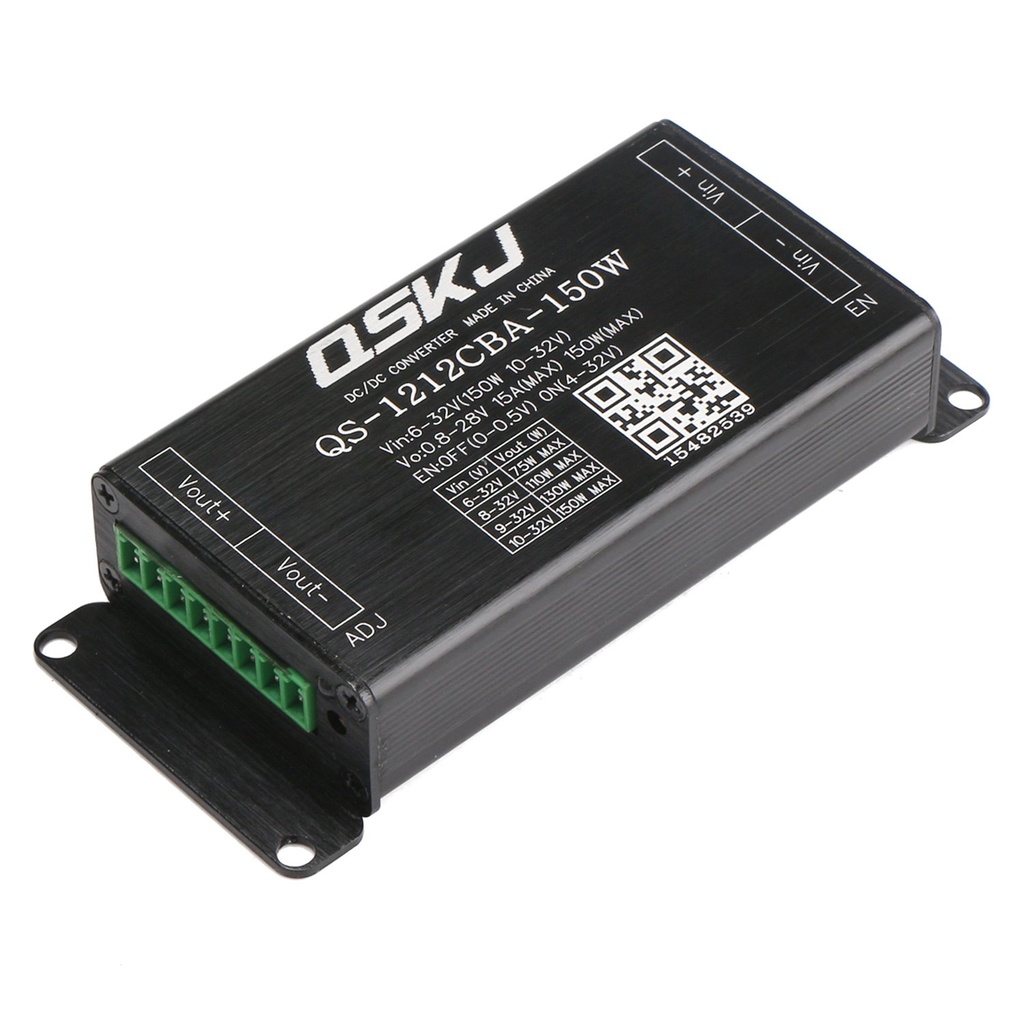

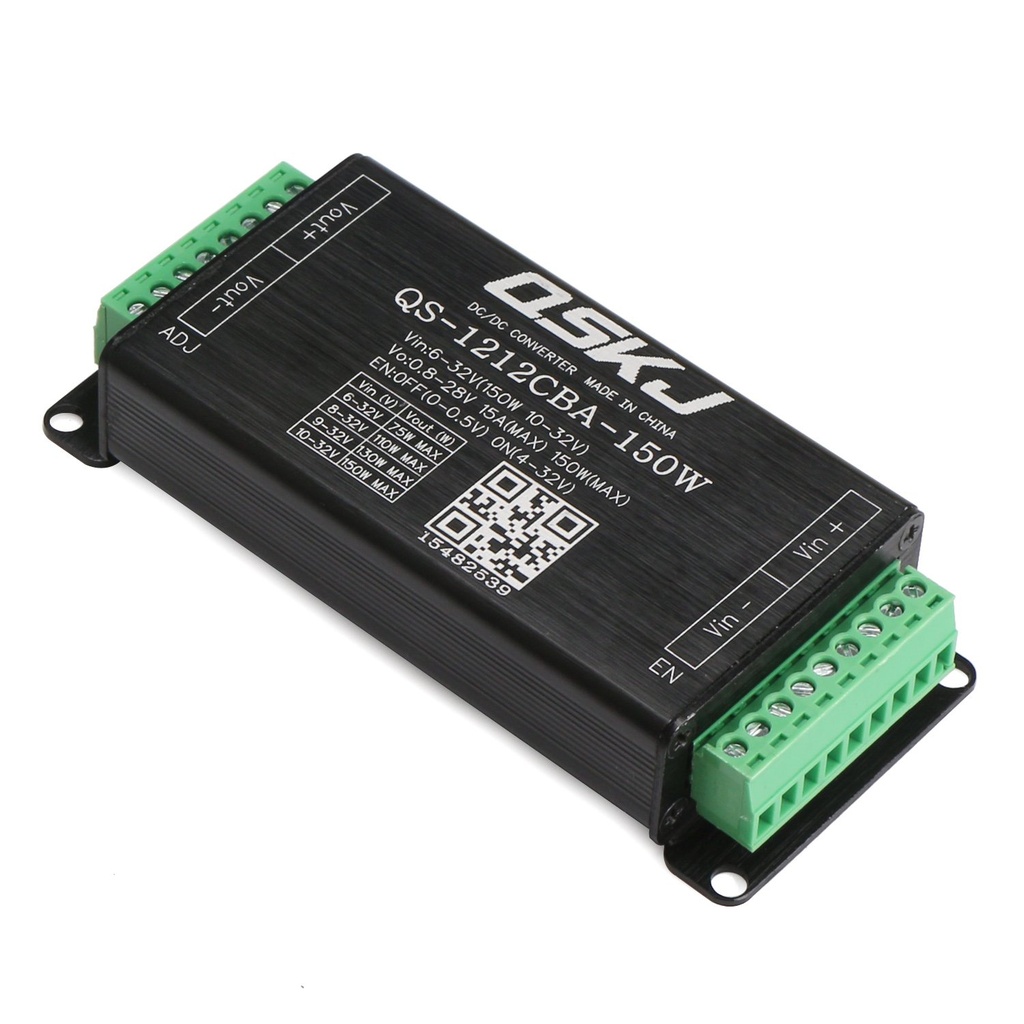

DC-DC 6V-32V TO 0.8-28V 150W 15A Buck-Boost Voltage Regulator QS-1212CBA-150W

Brand: QSKJ

Model: QS-1212CBA-150W

This Module is CE Certificate. Certificate will be provided after orders.

Size:6-32V to 0.8-28V 150W (Case)

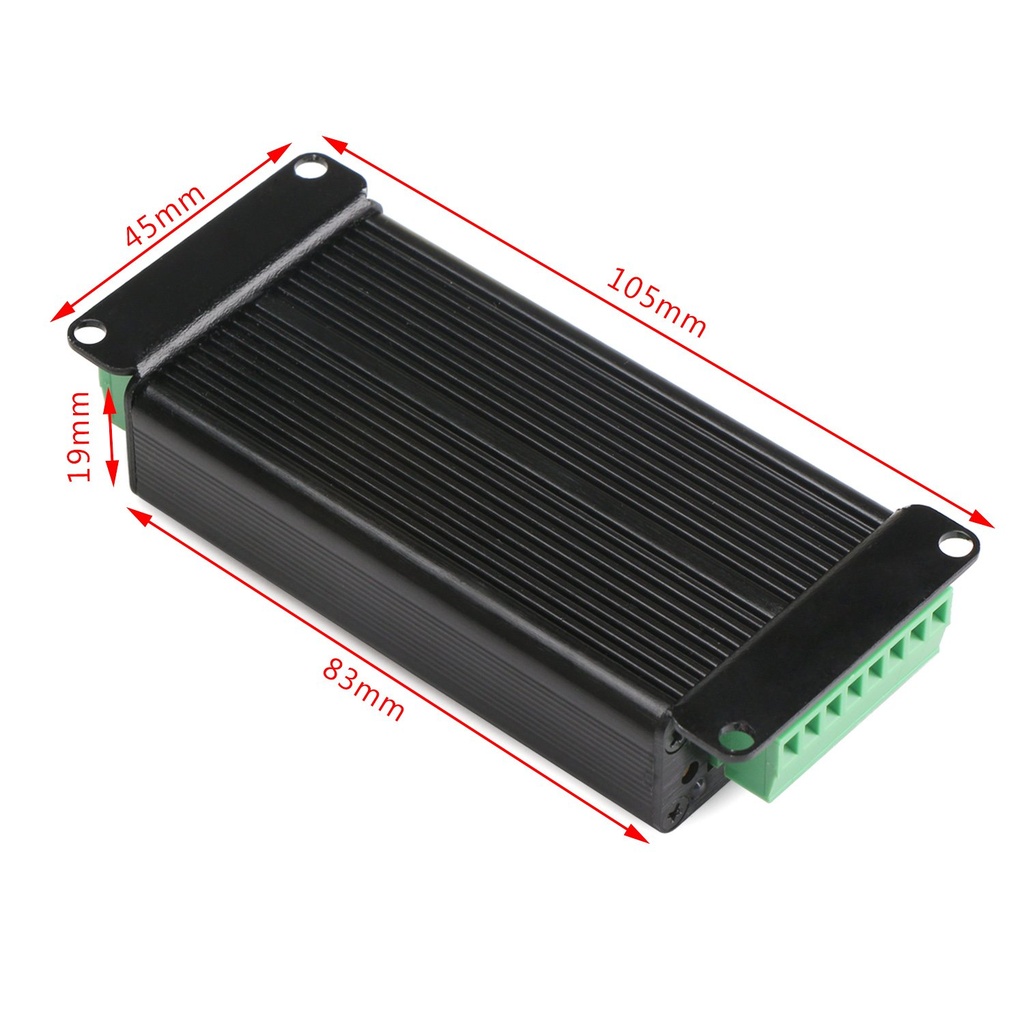

Size: 83 (L) x 45 (W) x 19 (H) mm (excluding input and output terminals)

Size: 101 (L) x 45 (W) x 19 (H) mm (including the input and output terminals)

Feature:

• Module Properties: non-isolated buck-boost module (high efficiency)

• Rectification: synchronous rectification

• Input voltage :DC 6-32V (Rated Power, input voltage equal to 9V; if input 6v, output about 90W)

• Lowest dropout: 0V (seamless automatic switching buck-boost, no minimum pressure requirements)

• Output voltage :DC 0.8-28V (adjustable)

• Output Current: 15A (MAX)

• Output Power: 150W (MAX) (eg: output 12V 13A)

• Conversion efficiency: Up to 97% (the higher the output voltage, the higher the efficiency, the smaller the pressure the higher the efficiency)

• Soft-start time: 500mS

• Remote control port: Yes, ON/OFF, (Connect 0V, closed), (Connect 5V or Vacant, work).

• Output ripple: 1% (MAX), 20M-bandwidth

• Operating Temperature: Industrial (-40°c to +85°c) (if ambient temperature exceeds 40 °c, please lower power use, or to enhance heat dissipation)

• Full load temperature rise: 40°c

• Load regulation:± 1%

• Voltage regulation: ± 0.5%

• Dynamic response speed: 5% 200uS

• Short circuit protection: Yes, output current limiting (current limit of about 17A)

• Input Reverse Polarity Protection: Yes

• Input over-voltage protection: Yes, over-voltage protection is 33V, the maximum input voltage can not exceed 36V.

• Indicator: Yes, working properly (Green), not working or protection (Red)

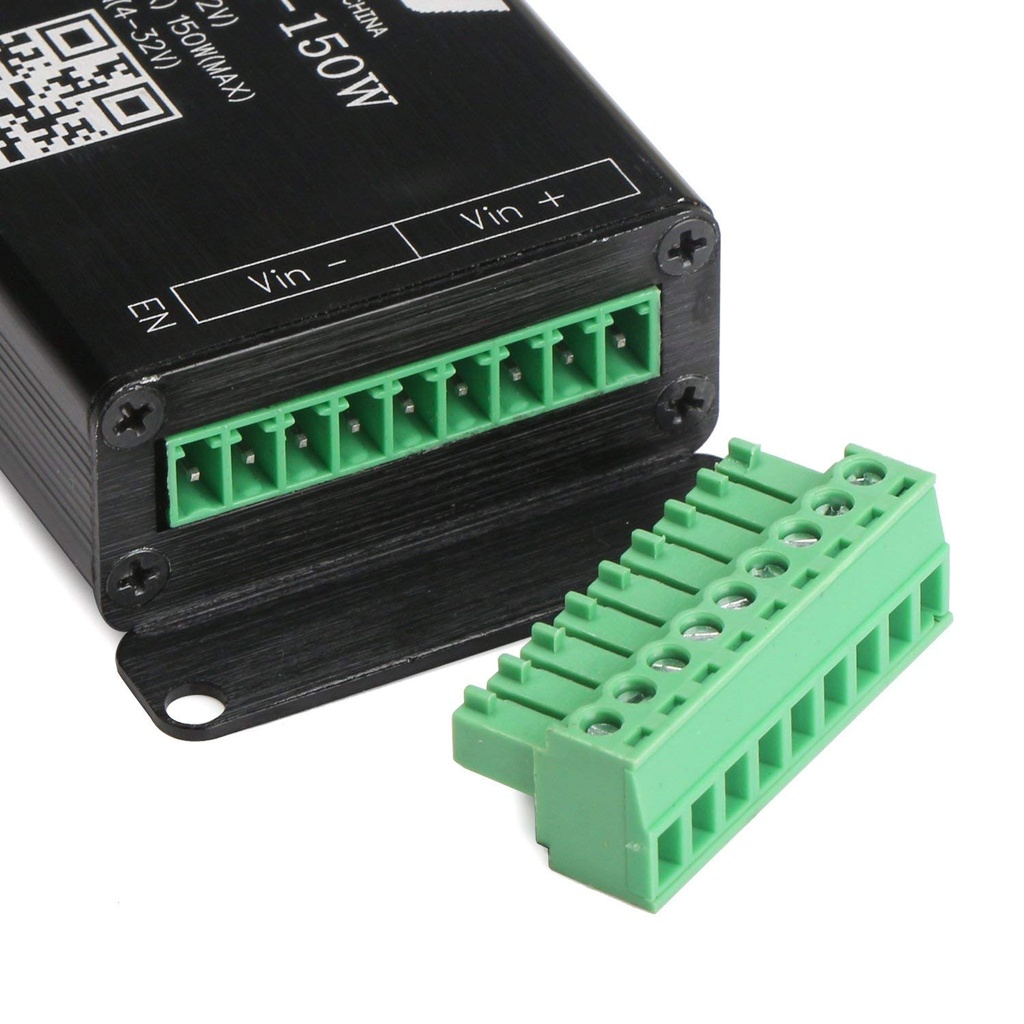

• Connection: Removable terminal, The eight input and output terminals,Maximum current per port 6A, Please use multiple ports in parallel when large current.
