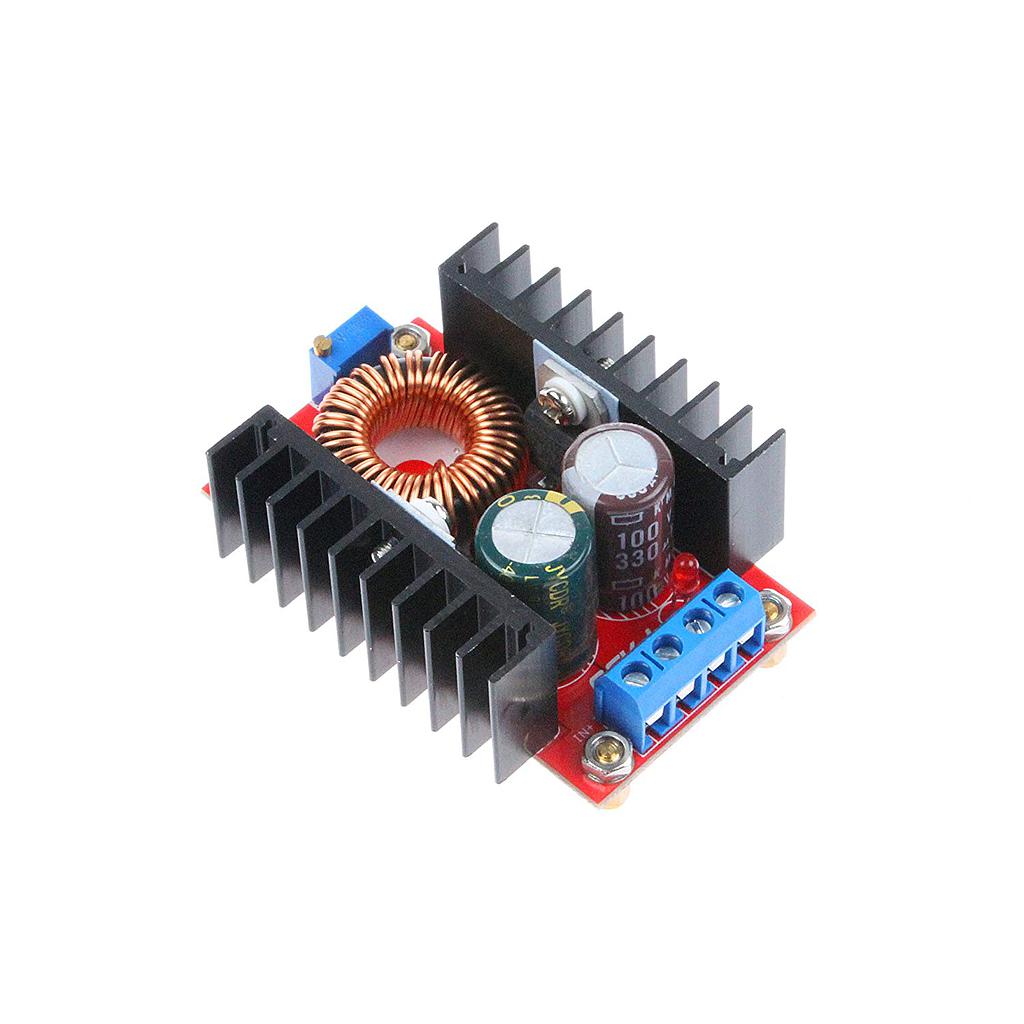

DC-DC Converter 10-32V to 60-97V Step Up Power Supply Module QS-1284CBD-100W

Brand: QSKJ

Model:  QS-1284CBD-100W

Parameters:

• Non-Isolated Boost Module

• Input voltage: DC 12V 24V (10-32V);

• Input current: 16A (Max (more than 10A, please strengthen heat dissipation);

• Output voltage: DC 60V 72V 84V (60-97V);

• Output current: 2A Max;

• Output power: Natural cooling 70W Max, enhanced heat dissipation 100W Max;

• Conversion efficiency: 85%;

• Output Ripple: 2% Output Voltage (MAX);

• Operating temperature: Industrial grade (-40°C to +85°C) (Environmental temperature exceeds 40°C, please reduce power usage or enhance heat dissipation);

• Full load temperature rise: 5°C;

• No-load current: Typical 35mA;

• Load regulation: ±0.5%

• Voltage regulation rate: ±0.5%;

• Dynamic response speed: 5% 200uS;

• Short circuit protection: None (please install a fuse or protection circuit at the input);

• Input reverse protection: None (usually can be protected at the input string diode);

• Dimensions: 65*47*28.5MM (without copper pillars), 65*47*32MM (with copper pillars).
