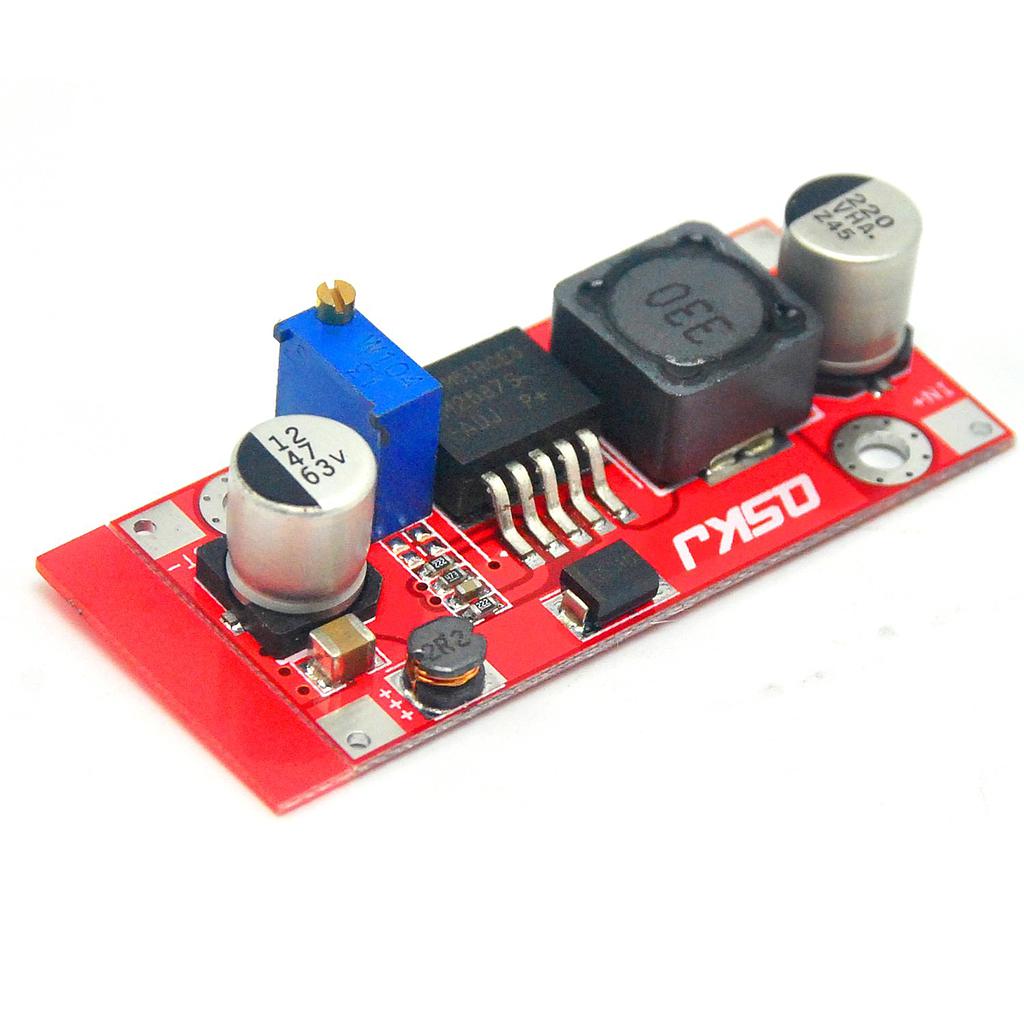

DC-DC LM2587 4-34V to 4-60V Step Up Module 5A Switching Current QS-0348CBDM-15W

Brand: QSKJ

Model:  QS-0348CBDM-15W

Parameters:

• Module Properties:Non-isolated step-up module (BOOST)

• Input voltage:4-34V

• Output Voltage:(1) continuously adjustable(4-60V)

•                          (2) Fixed output (4-60VBetween the arbitrary choice) And Please tell treasure purchase.

• Output current:2.5A (MAX)

• Input Current:3A (peak 5A) (5A current chip)

• Power output:Natural cooling15W, plusHeatsink25W (MAX)Actual power

• Maximum output power = input voltage * 5A * conversion efficiency

• Output power limit (Conditions:Good heat dissipation):

• Input 5V Output 12V 1.2A

• Input 5V Output 24V 0.6A

• Input 5V Output 48V 0.35A

• Input 7.4V Output 12V 2A

• Input 7.4V Output 19V 1.2A

• Input 7.4V Output 24V 0.9A

• Input 7.4V Output 48V 0.55A

• Input 12V Output 19V 2A

• Input 12V Output 24V 1.5A

• Input 12V Output 48V 0.8A

• Input 24V Output 48V 1.6A

Conversion Efficiency:

• Business is busy, no time to deal with the test image, a simple list of the current efficiency of the commonly measured voltage reference (hereinafter reference only)

• Input 5V Output 12V 0.5A Efficiency 84%

• 12V 0.5A input 7.4V output efficiency 90%

• Input 7.4V output the 12V 1A efficiency 88%

• Input 12V Output 16V 1A efficiency of 92%

• Input 12V Output 16V 2A efficiency 90%

• Input 12V Output 19V 1A efficiency of 91%

• Input 12V Output 19V 1.5A Efficiency 92%

• Input 12V Output 24V 0.5A Efficiency 89%

• Input 12V Output 24V 1A efficiency of 88%

• Output ripple: 20M bandwidth (for reference only)

• 48V 0.2A ripple 300 mV input 24V output

• Operating temperature:Industrial grade (-40 to +85 ) (ambient temperature exceeds 40 degrees, lower power use, or to enhance heat dissipation)

• Full load temperature rise:45

• No-load current:The typical 15mA (5V transferred 12V)

• Load regulation: 0.5%

• Voltage adjustment rate:0.5%

• Dynamic response speed:5% 200uS

• Short circuit protection:(Please enter the installation of fuse protection circuit)

• Input reverse polarity protection:None, in line with ourReverse polarity protection boardOr in the input series diode.

• Installation:Screws (diameter 3 mm), and two fixing holes

• Connection mode:Welding, plus pins can be soldered directly on the PCB

• Optional pin, radiator shell.
