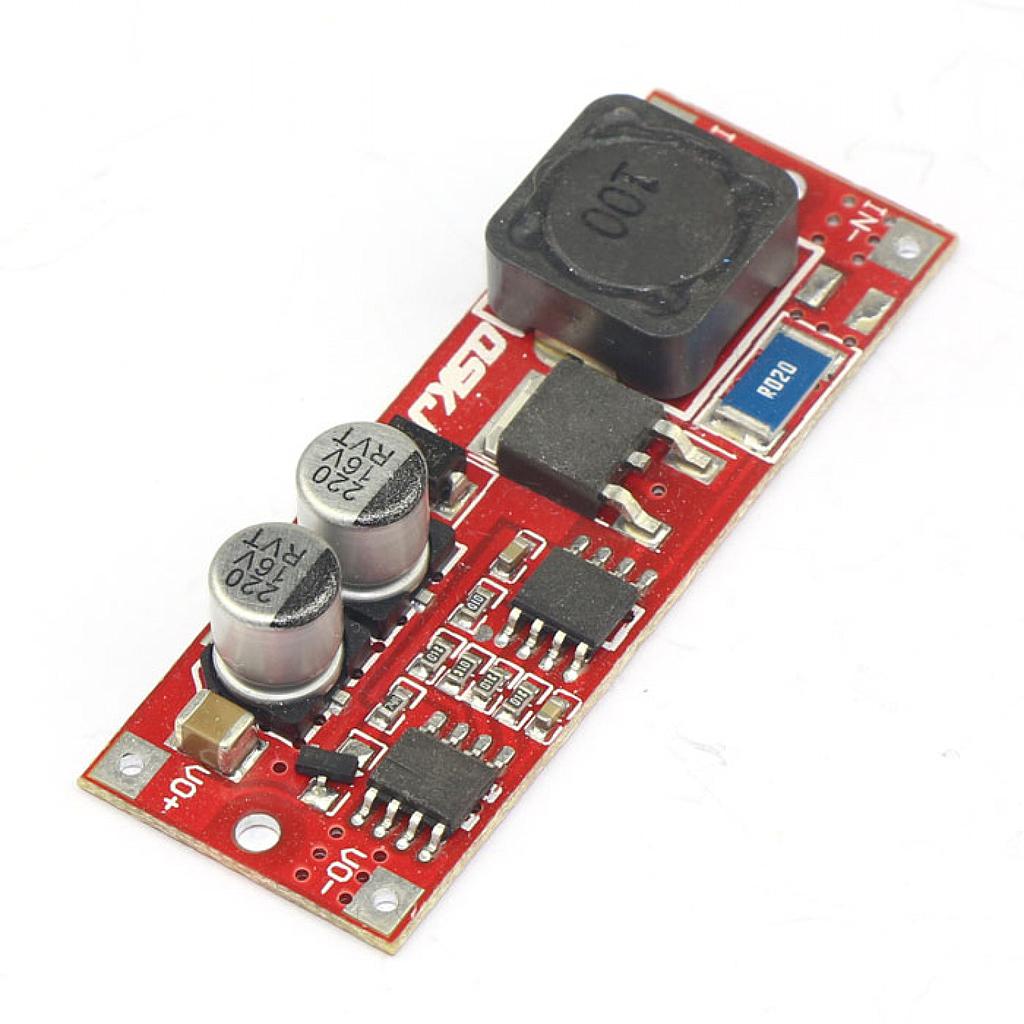

25W Voltage Regulator DC 8-12.6V to 10-14V Boost Converter QS-1113BAT-25W

Brand: QSKJ

Model:  QS-1113BAT-25W

Parameters:

• Module Properties: non-isolated step up module

• PCB size:50 x 18mm

• Input voltage:8-12.6V (3pcs Lithium Battery voltage)

• Output voltage:10-14V (10pcs Ni-MH battery voltage)

• Output Current:1.8A

• Output Power:25W (Max.)

• Conversion efficiency: up to 93%

• Load Regulation: ±1%

• Full load temperature rise: 40 °c

• Undervoltage protection: None

• Installation: welding

• IN+: input positive

• IN-: input negative

• OUT+:output positive

• OUT-: output negative

• Boot mode: Power-on

• Short-circuit protection: None (If need please install fuses at input port)

• Input reverse polarity protection: None (If need please install diode at input port)

• Close: EN pin is connected to 0V level (output voltage is approximately equal to input voltage)

• Operating temperature: Industrial grade (-40°c to 85°c) (ambient temperature exceeds 40°c, please reduce power, or enhance heat dissipation)

Application: 3pcs Lithium batteries to replace 10pcs Ni-MH batteries.
