6-13S 24V 36V 48V 25A 35A 50A 80A 150A Polymer Lithium/Ternary Lithium/ Iron Phosphate/LiFePo4 Battery Protection Board QS-B413ANL-25A
Categories :
Battery Protection Board(BMS)SKU :
2044313
100% original guarantee
Return within 30days
Worldwide Fast delivery
Description:
Model:QS-B413ANL-25A

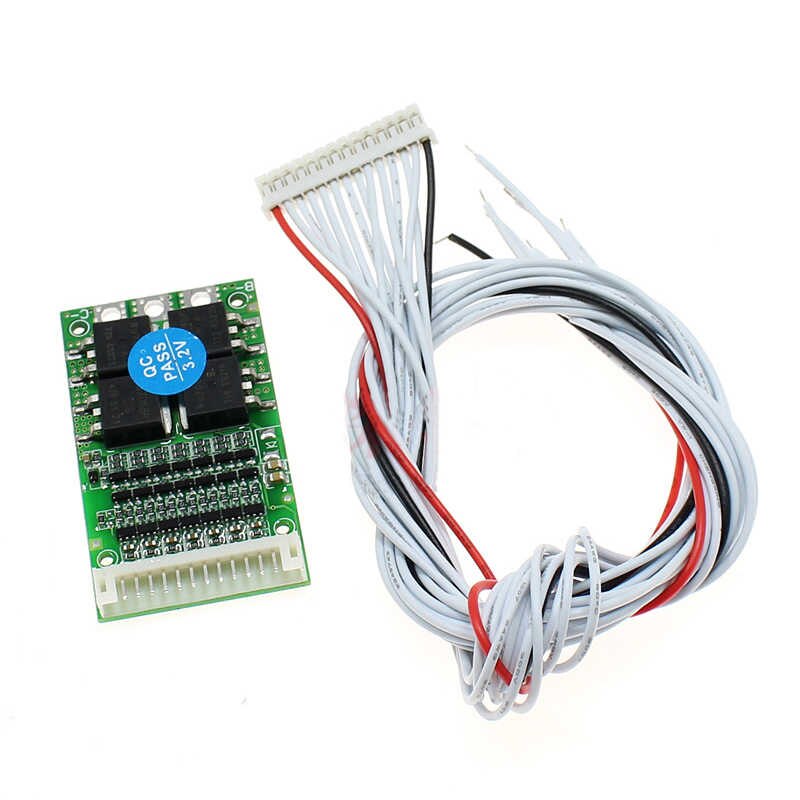

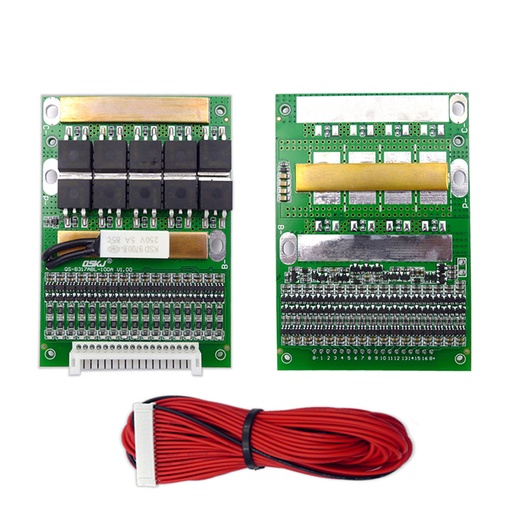

Ternary, lithium iron phosphate lithium battery 6--13 string same port split universal protection board, different series of batteries, only need to short from B+ to the string you need.
Features:
This protection board adopts mature protection circuit, Taiwan original special IC, 80A high current ultra low internal resistance MOS (single MOS internal resistance as low as 6.5 milliohms), with perfect and stable charging and discharging protection functions.
Small volume and large current can be used in high current applications such as power tools, electric vehicles, and UPS.
Strong compatibility: The protection board supports both the same port and split port. A lithium battery supporting 6-13 strings of polymer and lithium iron phosphate (note: the polymer plate cannot be used for lithium iron phosphate batteries).
Note: we send 13S without balancing by default .(requires other strings only need to change the wiring method)
This protection board is a power type high current lithium battery protection board, suitable for equipment with large current, such as electric tools, electric vehicles, UPS and other equipment.
Technical characteristics:
Polymer Ternary Lithium / Lithium Manganese Oxide Protection Board Parameters (3.6V/3.7V)
| Protection Item | Version | Min | Typ | Max | Unit |
|---|---|---|---|---|---|
| Overcharge Voltage | 4.23 | 4.25 | 4.27 | V | |
| Overcharge Recovery Voltage | 4.14 | 4.19 | 4.24 | V | |
| Overcharge Protection Delay | 700 | 1000 | 1300 | ms | |
| Overdischarge Voltage | 2.72 | 2.8 | 2.88 | V | |
| Overdischarge Recovery Voltage | 2.9 | 3.0 | 3.1 | V | |
| Overdischarge Protection Delay | 115 | 145 | 175 | ms | |
| Overdischarge Protection Current | 25A Non-Balanced | 54 | 60 | 66 | A |
| 35A Version | 96 | 107 | 118 | A | |
| 50A Version | 160 | 178 | 196 | A | |
| 80A Version | 225 | 250 | 275 | A | |
| 150A Version | 808 | 898 | 988 | A | |
| Discharge Current (Continuous) | 25A Non-Balanced | - | 18 | 25 | A |
| 35A Version | - | 30 | 35 | A | |
| 50A Version | - | 40 | 50 | A | |
| 80A Version | - | 50 | 65 | A | |
| 150A Version | - | 110 | 120 | A | |
| Overdischarge Current Protection Delay | 18 | 24 | 30 | ms | |
| Overcharge Protection Current | 25A Non-Balanced | 32 | 40 | 48 | A |
| 35A Version | 57 | 71 | 86 | A | |
| 50A Version | 95 | 119 | 142 | A | |
| 80A Version | 133 | 166 | 200 | A | |
| 150A Version | 474 | 592 | 711 | A | |
| Charge Current (Continuous) | 25A Non-Balanced | - | - | 18 | A |
| 35A Version | - | - | 30 | A | |
| 50A Version | - | - | 40 | A | |
| 80A Version | - | - | 65 | A | |
| 150A Version | - | - | 120 | A | |
| Overcharge Current Protection Delay | 12 | 16 | 20 | ms | |
| Standby Current | - | 25 | - | μA | |
| Temperature Protection | 25A Non-Balanced | - | Temp. Control Interface | - | °C |
| 35A-150A Version | - | 75 | - | °C | |
| Disconnect Protection | - | None | - | - | |
| Short Circuit Protection | - | None | - | - | |
| Short Circuit Delay | - | None | - | μs | |
| Overcurrent Recovery Mode | - | Load Disconnect Recovery | - | - | |
| Balancing Function | - | Available (25A Version Excluded) | - | - | |
| Balancing Voltage | - | 4.18 | - | V | |
| Balancing Current | - | 60 | - | mA | |
| Dimensions | 25A Non-Balanced | - | 55.1×31.5×7.6 (without heat sink) | - | mm |
| 35A Version | - | 84.2×58.5×12.6 | - | mm | |
| 50A Version | - | 84.2×58.5×12.6 | - | mm | |
| 80A Version | - | 84.2×58.5×15.6 | - | mm | |
| 150A Version | - | 92.7×84.7×15.6 | - | mm | |
| Weight | 25A Non-Balanced | - | 46 (with cables) | - | g |
| 35A Version | - | 127 (with cables) | - | g | |
| 50A Version | - | 130 (with cables) | - | g | |
| 80A Version | - | 178 (with cables) | - | g | |
| 150A Version | - | 272 (with cables) | - | g | |
| Standard Accessories | - | PCB, Harness | - | - | |
| Standard Packaging | - | Anti-static Bag | - | - | |
| Harness Specification | 25A-80A Version | - | 14P 22AWG | - | PH2.0 |
| 150A Version | - | 14P 22AWG | - | XH2.54 | |
| Harness Length | - | 40 | - | cm | |
| Operating Temperature | - | -20°C ~ +65°C | - | °C | |
| Storage Temperature | - | -40°C ~ +85°C | - | °C |
Notes: "Typ" = Typical Value; "Temp." = Temperature; "PCB" = Printed Circuit Board.
