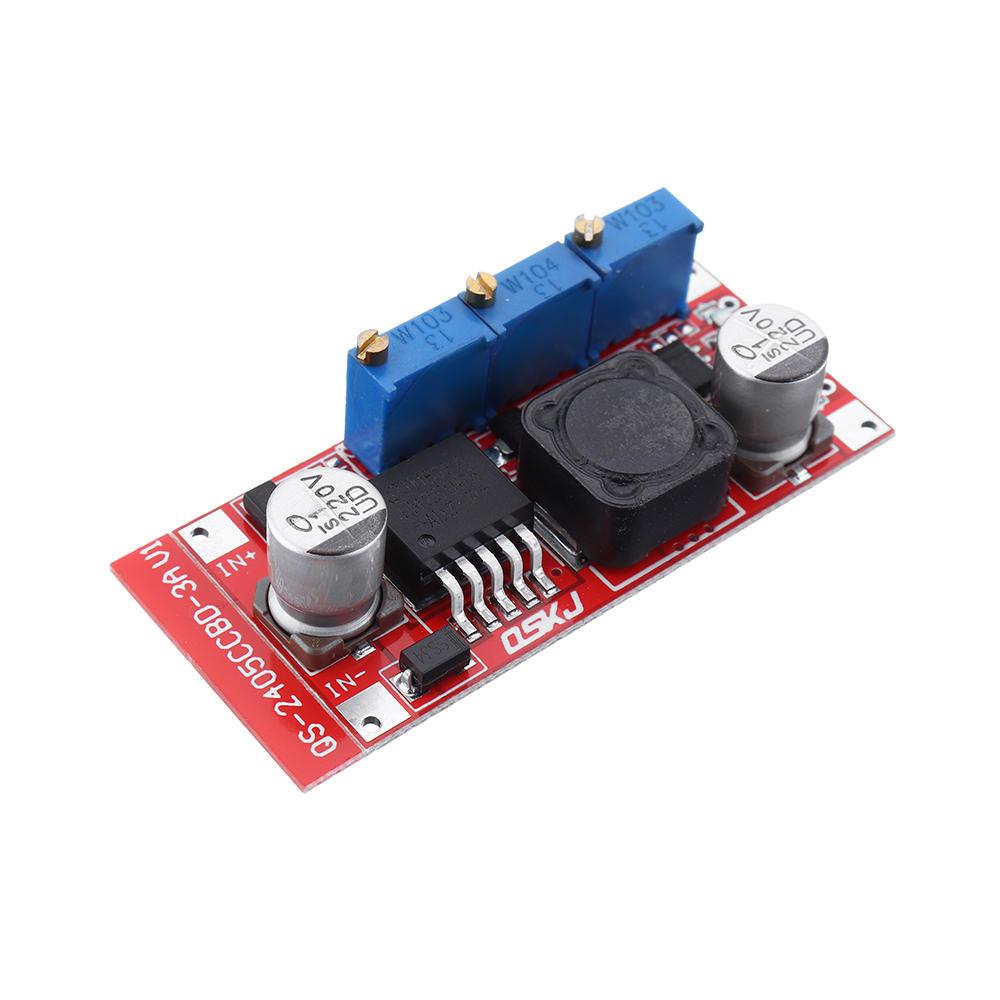

DC-DC 7-35V to 1.25-30V CC CV LED Buck Converter Power Supply Charging Module QS-2405CCBD-15W

Brand: QSKJ

Model:  QS-2405CCBD-15W

Parameters:

• Input voltage: 7-35V

• Output voltage: 1.25-30V

• Output Current: Max 3A ( If more than 15W, please install the heat sink, this item do not include heat sink)

• Constant current range :0-3A (adjustable)

• Min Voltage pressure: 2V

• Output power: natural cooling 15W

• Conversion efficiency: 85% (the higher the output voltage, the higher the efficiency

• Operating Temperature: Industrial (-40°c to +85°c) (if ambient temperature exceeds 40 °c, please lower power use, or to enhance heat dissipation)

• Full load temperature rise: 45°c

• No-load Current: typical 10mA (12V to 4.2V)

• Load Regulation: ± 1%

• Voltage Regulation: ± 0.5%

• Current Accuracy and temperature: Actual Testing, Temperature changes from 20 degrees To 100 degrees, Constant current value change Less than 1% (constant current value 1A)

• Dynamic response speed: 5% 200uS

• Potentiometer adjustment direction:Clockwise (increase),Counterclockwise (decrease)

• Indicator LED: Charging LED Red, Full Charge LED Green

• Output Short-circuit Protection:YES

• Input Reverse Polarity Protection:YES

• Output Prevent Countercurrent: YES

Battery Charging Method:

• Make sure the recharge battery float voltage and charge current, input voltage of the module.

• adjust constant voltage regulator, the output voltage about 3V.

• With a multimeter ( to 10A) Measuring output Short-circuit current, Also adjust the constant regulator allows Output current gets a predetermined charge current value;

• Adjust Constant regulator allows Output voltage gets the float voltage;

• connected to the battery, try charging. (1,2,3,4 step input connect power, output do not connect battery.)

LED Constant Current Driver Usage:

• Make sure LED current and the maximum operating voltage;

• adjust constant voltage regulator, the output voltage about 3V.

• With a multimeter ( to 10A) Measuring output Short-circuit current, Also adjust the constant regulator allows Output current gets a predetermined LED working current value;

• Adjust Constant regulator allows Output voltage get LED maximum working voltage;

• Connected to the LED, test (1,2,3,4 take steps input connect power, output do not connected LED.)

Applications:

• Battery charger (including ferroelectric), 4V, 6V, 12V, 14V, 24V battery charging, nickel-cadmium nickel-metal hydride batteries (battery) charger, solar panels, wind generators.

• Solar Panel, Wind generator voltage regulator, Car Power Supply.
