12A 3.2V PCB BMS Protection Board 26650 18650 LiFePO4 Battery Cell

Features:

Over charging protection, over discharge protection, short circuit protection, over current protection function

Parameters:

• Overcharge detection voltage: 3.75V±0.25V

• Overcharge release voltage: 3.6V±0.25V

• Over discharge detection voltage: 2.1±0.05V

• Overcurrent detection current: 15A

• Continuous operating current: 12A

• Charging voltage: 3.6V

• Size: 35*7.6*2.2MM

• MOS: 8205A*6

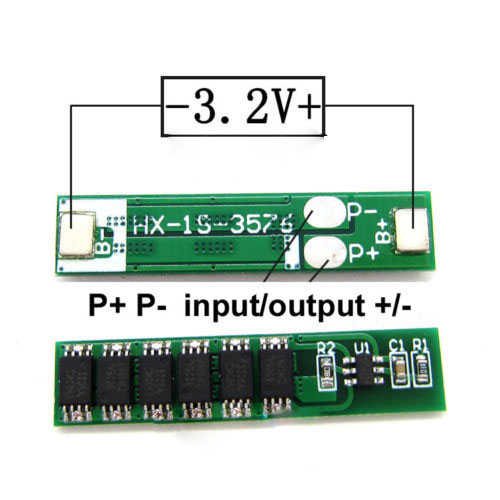

Connection description:

• B+ connect to battery+

• B- connect to battery+

• P+ for battery output input+

• P- for battery output input-
