6-17S BMS 24V 36V 48V 60V 35-150A Polymer Lithium/Ternary Lithium/ Iron Phosphate/LiFePo4 Battery Protection Board
Categories :
Battery Protection Board(BMS)SKU :
2144756
100% original guarantee
Return within 30days
Free delivery on all orders
Features:
All BMS with heat sink
This protection board adopts mature protection circuit, Taiwan original special IC, 80A high current ultra low internal resistance MOS (single MOS internal resistance as low as 6.5 milliohms), with perfect and stable charging and discharging protection functions.
Small volume and large current can be used in high current applications such as power tools, electric vehicles, and UPS.
Strong compatibility: The protection board supports two kinds of wiring methods: the same port and the split port. It supports 6-17 string polymer and lithium iron phosphate lithium battery.
Default delivery: 17S (requires other strings only need to change the wiring method)

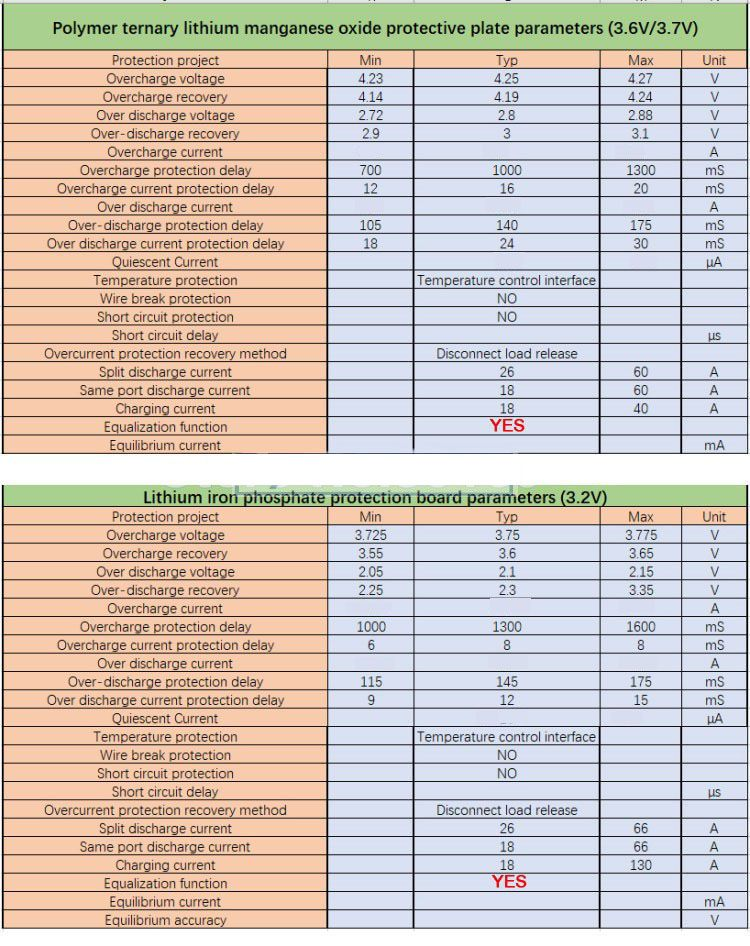

Parameters:

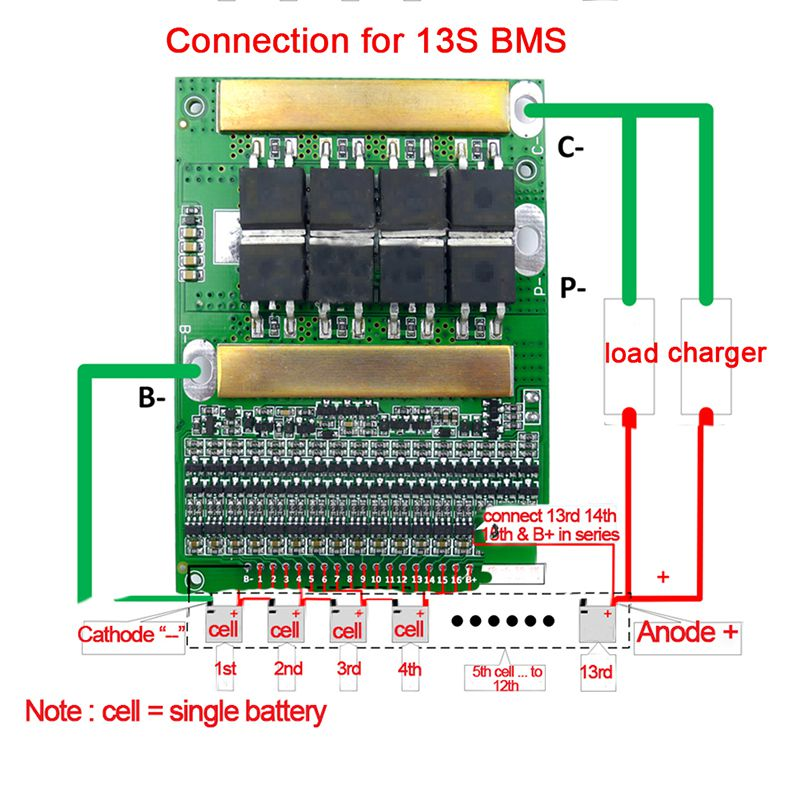

Wiring Diagram:

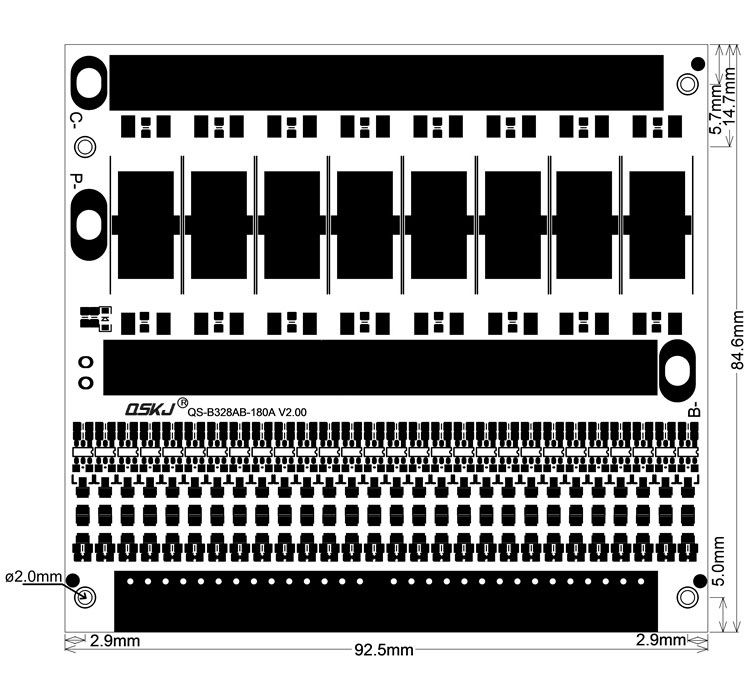

Board Size:

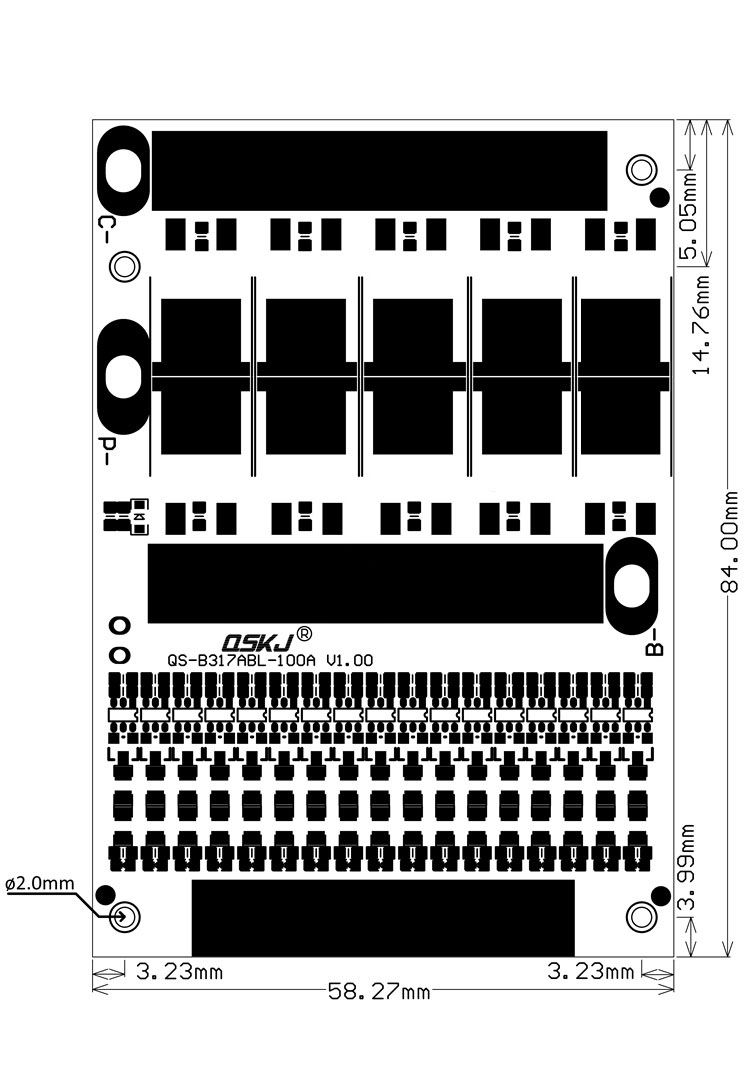

35-80A

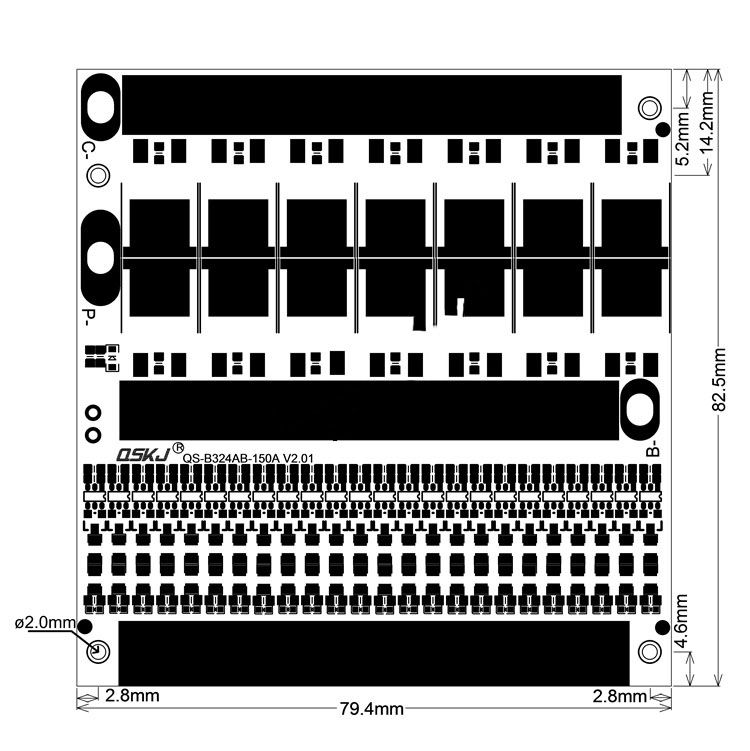

120A Size:
150A Size:
