Brand: QSKJ

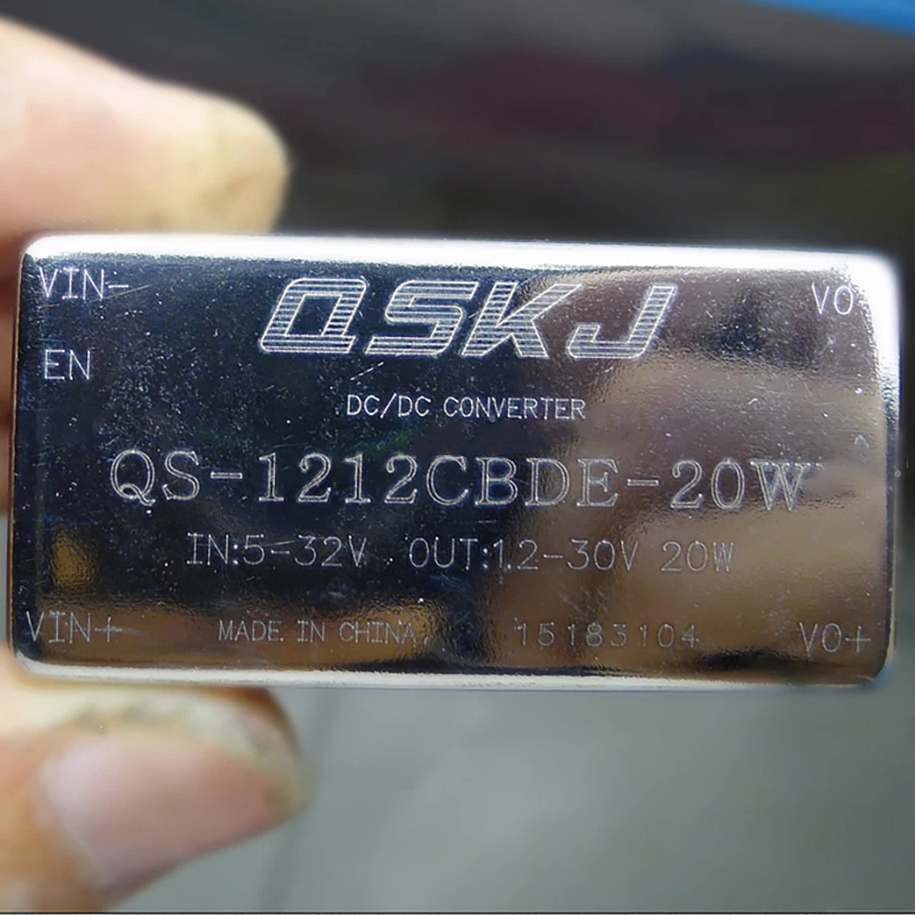

Model: QS-1212CBDE-20W with Enclosure
Features:
- New original XLSEMI chip, to prevent counterfeiting, disassemble chip
- Imported chip electrolytic capacitors, not peer-made domestic capacitors.
- Up to 400Khz operating frequency, and LC filter circuit, the output ripple is very low.
- Imported TDK inductance, the heat and interference to a minimum.
- Input and output of three MLCC multilayer ceramic capacitors, anti-jamming to enhance stability.
- PCB using the A-class board material, to prevent cardboard, garbage board.
- Built-in MOSFET, with the LM2577 built-in transistor say goodbye, can reach 94% of the high efficiency.
- Increase the enable port, you can control the boost circuit is working.
- QS-1212CBDE-20W power supply module with enable port
- (Please click here for heat sink connection
- Size: 49 (L) * 23.4 (W) * 11.4 (H) mm (without potentiometer)
- The following parameters are still in the adjustment, the specific parameters, please consult
- According to customer requirements, QSKJ also introduced XL6009 program, high cost. QSKJ produced ~ to create quality.
Parameters:
- Modular nature: non-isolated step-up and down module
- Input voltage: 5-32VOutput current: 1.5A (MAX)
- Input current: 4A (MAX)
- Output power: natural cooling 20W, plus heat sink 25W (MAX) the actual power
- Maximum output power = input voltage * 4A * conversion efficiency
- Conversion efficiency: Measured common voltage and current efficiency (below for reference only)
- Output Ripple: Input 12V Output 24 0.5A Ripple 30MV 20M Bandwidth (for reference only)
- Operating temperature: industrial (-40 ℃ to +85 ℃) (ambient temperature exceeds 40 degrees, please reduce the power to use, or strengthen the heat)
- Full load temperature rise: 45 ℃
- Working frequency: 400khz
- No-load current: typical 15mA (5V to 12V)
- Load regulation: ± 0.5%
- Voltage regulation: ± 0.5%
- Dynamic response speed: 5% 200uS
- Enable control port: Yes, high level 1.4V-VIN (ON), low level 0-0.8V (OFF), default high level
- Short circuit protection: None (Please input fuse or protective circuit at input)
- Input Reverse Protection: None, please tie in with our reverse protection board or in the input series diode.
- Installation: can be screwed (fixed hole 3 mm), 2 fixed holes
- Wiring method: welding, plus the pin can be directly welded on the PCB
- Output voltage: continuously adjustable (1.2-35V) ; fixed output (1.2-35V between any choice), please tell the treasurer when buying; If you need higher voltage please contact me directly.
